Thinning MCMC outputs

This notebook illustrates how to use pbnn.utils.misc.thinning_fn for thinning a MCMC output.

import blackjax
import flax.linen as nn
import jax
import jax.numpy as jnp
import jax.random as jr
import jax.scipy.stats as stats
import matplotlib.pyplot as plt
import numpy as np
from jax.flatten_util import ravel_pytree
from matplotlib.gridspec import GridSpec

from pbnn.mcmc.langevin import sgld
from pbnn.utils.analytical_functions import gramacy_function
from pbnn.utils.plot import plot_on_axis
from pbnn.utils.misc import thinning_fn

%load_ext watermark

Generate data

n = 100
noise_level = 0.1

np.random.seed(0)
X = 20 * np.random.rand(n, 1)
X_test = np.linspace(0, 20, 200)[:, None]
X, X_test = jnp.array(X), jnp.array(X_test)

noise, noise_test = (
    np.random.randn(n, 1) * noise_level,
    np.random.randn(len(X_test), 1) * noise_level,
)

y = gramacy_function(X, noise)
y_test = gramacy_function(X_test, noise_test)

An NVIDIA GPU may be present on this machine, but a CUDA-enabled jaxlib is not installed. Falling back to cpu.

Define the network, loglikelihood and logprior

# define loglikelihood et logprior
class MLP(nn.Module):
    """Simple MLP."""

    hidden_features: int
    out_features: int

    @nn.compact
    def __call__(self, x):
        x = nn.Dense(
            features=self.hidden_features,
            kernel_init=nn.initializers.normal(),
            bias_init=nn.initializers.normal(),
        )(x)
        x = nn.tanh(x)
        x = nn.Dense(
            features=self.hidden_features,
            kernel_init=nn.initializers.normal(),
            bias_init=nn.initializers.normal(),
        )(x)
        x = nn.tanh(x)
        x = nn.Dense(
            features=self.out_features,
            kernel_init=nn.initializers.normal(),
            bias_init=nn.initializers.normal(),
        )(x)
        return x


network = MLP(hidden_features=50, out_features=1)


def loglikelihood_fn(parameters, data, sig_noise: float = noise_level):
    """Gaussian log-likelihood"""
    X, y = data
    return -jnp.sum(
        0.5 * (y - network.apply({"params": parameters}, X)) ** 2 / sig_noise**2
    )


def logprior_fn(parameters):
    """Compute the value of the log-prior density function."""
    flat_params, _ = ravel_pytree(parameters)
    return jnp.sum(stats.norm.logpdf(flat_params))

Run the SGLD algorithm

# set some hyperparameters
step_size = 1e-6
num_iterations = 100_000
burnin = 80_000
batch_size = 32

# generate initial positions
rng_key = jr.PRNGKey(0)
keys = jr.split(rng_key)

init_positions = network.init(keys[0], X)["params"]

# run SGLD
positions, ravel_fn, predict_fn = sgld(
    X=X,
    y=y,
    loglikelihood_fn=loglikelihood_fn,
    logprior_fn=logprior_fn,
    init_positions=init_positions,
    batch_size=batch_size,
    step_size=step_size,
    num_iterations=num_iterations,
    rng_key=keys[1],
)

# remove burnin
positions = jax.tree_util.tree_map(lambda xx: xx[burnin:], positions)

Thinning

The MCMC output is thinned by minimizing the energy distance using the function thinning_fn. Here, we thin the MCMC output of size 20000 into a subsample of size 2000.

# thin the MCMC output
rpositions = ravel_fn(positions)
idx = thinning_fn(rpositions, size=2000)

# filter with the indices
positions = jax.tree_util.tree_map(lambda xx: xx[idx], positions)

# predict
f_predictions = predict_fn(network, positions, X_test).squeeze()

# generate the noisy predictions
_, key = jr.split(keys[1])
y_predictions = f_predictions + noise_level * jr.normal(
    key, shape=(len(f_predictions), 1)
)

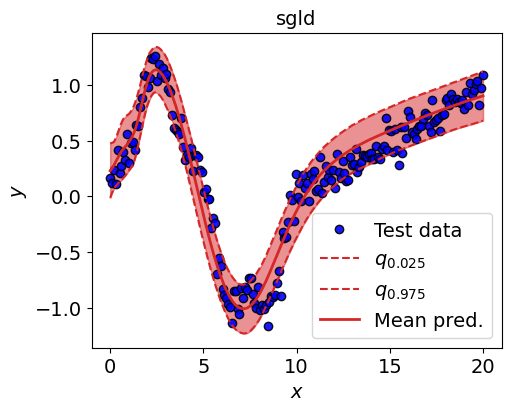

Plot the prediction intervals

fig = plt.figure(constrained_layout=True, figsize=(5, 4))
gs = GridSpec(nrows=1, ncols=1, figure=fig)
alpha = 0.05

mean_prediction = jnp.median(y_predictions, axis=0)
qlow = jnp.quantile(y_predictions, 0.5 * alpha, axis=0)
qhigh = jnp.quantile(y_predictions, (1 - 0.5 * alpha), axis=0)

ax = fig.add_subplot(gs[0])
plot_on_axis(ax, X_test, y_test, mean_prediction, qlow, qhigh, title=f"sgld")

%reload_ext watermark
%watermark -n -u -v -iv -w -a 'Brian Staber'

Author: Brian Staber

Last updated: Tue Feb 27 2024

Python implementation: CPython
Python version       : 3.11.7
IPython version      : 8.21.0

blackjax  : 1.1.0
jax       : 0.4.23
matplotlib: 3.8.2
flax      : 0.8.0
numpy     : 1.26.3

Watermark: 2.4.3
