Conformal prediction with Flax and MAPIE¶
import warnings
import jax.numpy as jnp
import jax.random as jr
import mapie
import matplotlib.pyplot as plt
import numpy as np
import optax
from jax import Array
from mapie.regression import MapieRegressor
from matplotlib.gridspec import GridSpec
from sklearn.base import BaseEstimator, RegressorMixin
from sklearn.metrics import r2_score
from sklearn.model_selection import train_test_split
from pbnn.map_estimation import train_fn
from pbnn.models import MLP
from pbnn.utils.analytical_functions import gramacy_function
from pbnn.utils.plot import plot_on_axis
warnings.filterwarnings('ignore')
%load_ext watermark
Generate data¶
n = 100
noise_level = 0.1
np.random.seed(0)
X = 20 * np.random.rand(n, 1)
X_test = np.linspace(0, 20, 200)[:, None]
X, X_test = jnp.array(X), jnp.array(X_test)
noise, noise_test = (
np.random.randn(n, 1) * noise_level,
np.random.randn(len(X_test), 1) * noise_level,
)
y = gramacy_function(X, noise)
y_test = gramacy_function(X_test, noise_test)
An NVIDIA GPU may be present on this machine, but a CUDA-enabled jaxlib is not installed. Falling back to cpu.
Define a neural network using Flax¶
Let’s define a simple MLP network using pbnn.models. In order to be able to use MAPIE, we also need to define scikit-learn-like regressors that has fit and predict methods.
Two regressors are implemented below: a simple MLP regressor trained with a MSE loss, and a MLP quantile regressor trained with the pinball loss.
class MLPRegressor(RegressorMixin, BaseEstimator):
def __init__(
self,
hidden_features: int,
output_features: int,
batch_size: int = 32,
num_epochs: int = 1000,
lr: float = 5e-3,
rng_key: Array = jr.PRNGKey(0),
):
self.model = MLP(hidden_features=hidden_features, out_features=output_features)
self.hidden_features = hidden_features
self.output_features = output_features
self.batch_size = batch_size
self.num_epochs = num_epochs
self.lr = lr
self.rng_key = rng_key
def fit(self, X, y):
X, y = jnp.array(X), jnp.array(y)
def loss_fn(params, batch_of_data):
X_batch, y_batch = batch_of_data
predictions = self.model.apply({"params": params}, X_batch).squeeze()
return -optax.losses.l2_loss(predictions, y_batch).mean()
self.params = train_fn(
logposterior_fn=loss_fn,
network=self.model,
train_ds={"x": X, "y": y},
batch_size=self.batch_size,
num_epochs=self.num_epochs,
learning_rate=self.lr,
rng_key=self.rng_key,
)
_, self.rng_key = jr.split(self.rng_key)
return self
def predict(self, X):
X = jnp.array(X)
return self.model.apply({"params": self.params}, X).squeeze()
class QuantileMLPRegressor(RegressorMixin, BaseEstimator):
def __init__(
self,
hidden_features: int,
output_features: int,
alpha: float,
batch_size: int = 32,
num_epochs: int = 1000,
lr: float = 5e-3,
rng_key: Array = jr.PRNGKey(0),
):
self.model = MLP(hidden_features=hidden_features, out_features=output_features)
self.hidden_features = hidden_features
self.output_features = output_features
self.batch_size = batch_size
self.num_epochs = num_epochs
self.lr = lr
self.alpha = alpha
self.alpha_ = [alpha, 0.5, 1 - alpha]
self.rng_key = rng_key
assert output_features == len(self.alpha_)
def fit(self, X, y):
X, y = jnp.array(X), jnp.array(y)
def loss_fn(params, batch_of_data):
X, target = batch_of_data
preds = self.model.apply({"params": params}, X)
losses = []
preds_reshape = preds.reshape((-1, target.shape[1], len(self.alpha_)))
for i, q in enumerate(self.alpha_):
errors = target - preds_reshape[..., i]
losses.append(jnp.maximum((q - 1) * errors, q * errors))
loss = jnp.mean(jnp.sum(jnp.concatenate(losses, axis=-1), axis=-1))
return -loss
self.params = train_fn(
logposterior_fn=loss_fn,
network=self.model,
train_ds={"x": X, "y": y},
batch_size=self.batch_size,
num_epochs=self.num_epochs,
learning_rate=self.lr,
rng_key=self.rng_key,
)
_, self.rng_key = jr.split(self.rng_key)
return self
def predict(self, X):
X = jnp.array(X)
return self.model.apply({"params": self.params}, X).squeeze()
Custom implementation of split CQR¶
Altough split conformalized quantile regression is available in MAPIE, it can’t be used with an arbitrary quantile regressor. However, it can easily be implemented as follows.
from typing import Union
from sklearn.base import clone
class SplitCQR(object):
def __init__(
self,
regressor,
X_train: Union[list, np.ndarray],
y_train: np.ndarray,
X_cal: Union[list, np.ndarray],
y_cal: np.ndarray,
alpha: float,
) -> object:
self.alpha = alpha
self.X_train = X_train
self.y_train = y_train
self.X_cal = X_cal
self.y_cal = y_cal
self.output_dim = y_train.shape[1]
self.regressor = clone(regressor)
self.__class__.__name__ = "split_cqr"
def fit(self):
self.regressor.fit(self.X_train, self.y_train)
pred_cal = self.regressor.predict(self.X_cal).reshape(-1, self.output_dim, 3)
r_lo = pred_cal[:, :, 0] - self.y_cal
r_hi = self.y_cal - pred_cal[:, :, 2]
self.residuals = np.max(np.stack([r_lo, r_hi], axis=2), axis=2)
return self
def predict(self, X_test: np.ndarray):
n = len(self.X_cal)
pred_test = self.regressor.predict(X_test)
q_med, q_lo, q_hi = pred_test[:, 1::3], pred_test[:, 0::3], pred_test[:, 2::3]
qleft = np.empty((len(X_test), self.output_dim))
qright = np.empty((len(X_test), self.output_dim))
for k in range(self.output_dim):
q = np.quantile(
self.residuals[:, k],
(1 - self.alpha) / (1.0 + 1.0 / n),
axis=0,
method="higher",
)
qleft[:, k] = q_lo[:, k] - q
qright[:, k] = q_hi[:, k] + q
return q_med, qleft, qright
Apply conformal prediction using MAPIE¶
alpha = 0.1
algorithms = {
"split_cv": dict(method="base", cv="split", test_size=0.1),
"cv_plus": dict(method="plus", cv=20),
"split_cqr": dict(test_size=0.2, alpha=alpha),
}
mlp_regressor_params = {
"hidden_features": 100,
"output_features": 1,
"num_epochs": 1_000,
"lr": 5e-3,
}
quantile_regressor_params = {
"hidden_features": 100,
"output_features": 3,
"num_epochs": 1_000,
"lr": 5e-3,
"alpha": alpha,
}

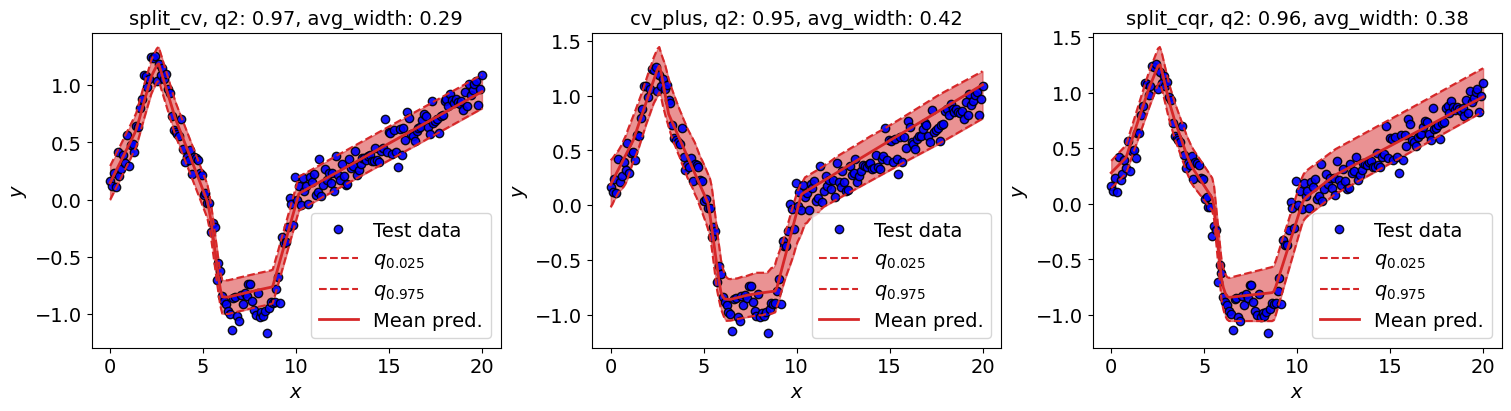

fig = plt.figure(constrained_layout=True, figsize=(3 * 5, 1 * 4))
gs = GridSpec(nrows=1, ncols=3, figure=fig)
for i, (algorithm, params) in enumerate(algorithms.items()):
if algorithm == "split_cqr":
regressor = QuantileMLPRegressor(**quantile_regressor_params)
X_train, X_cal, y_train, y_cal = train_test_split(
X, y, test_size=params["test_size"]
)
model = SplitCQR(
regressor, X_train, y_train, X_cal, y_cal, alpha=params["alpha"]
)
model.fit()
y_pred, qlow, qhigh = model.predict(X_test)
else:
regressor = MLPRegressor(**mlp_regressor_params)
mapie = MapieRegressor(
regressor,
**params,
)
mapie.fit(X, y.ravel())
y_pred, y_pis = mapie.predict(X_test, alpha=alpha)
qlow, qhigh = y_pis[:, 0, 0], y_pis[:, 1, 0]
q2_score = r2_score(y_test, y_pred)
avg_width = np.mean(qhigh - qlow)
ax = fig.add_subplot(gs[i])
plot_on_axis(
ax,
X_test,
y_test,
y_pred.ravel(),
qlow.ravel(),
qhigh.ravel(),
title=f"{algorithm}, q2: {q2_score:.2f}, avg_width: {avg_width:.2f}",
)
%reload_ext watermark
%watermark -n -u -v -iv -w -a 'Brian Staber'
Author: Brian Staber
Last updated: Thu Mar 28 2024
Python implementation: CPython
Python version : 3.11.7
IPython version : 8.21.0
numpy : 1.26.3
optax : 0.1.9
matplotlib: 3.8.2
jax : 0.4.23
Watermark: 2.4.3
